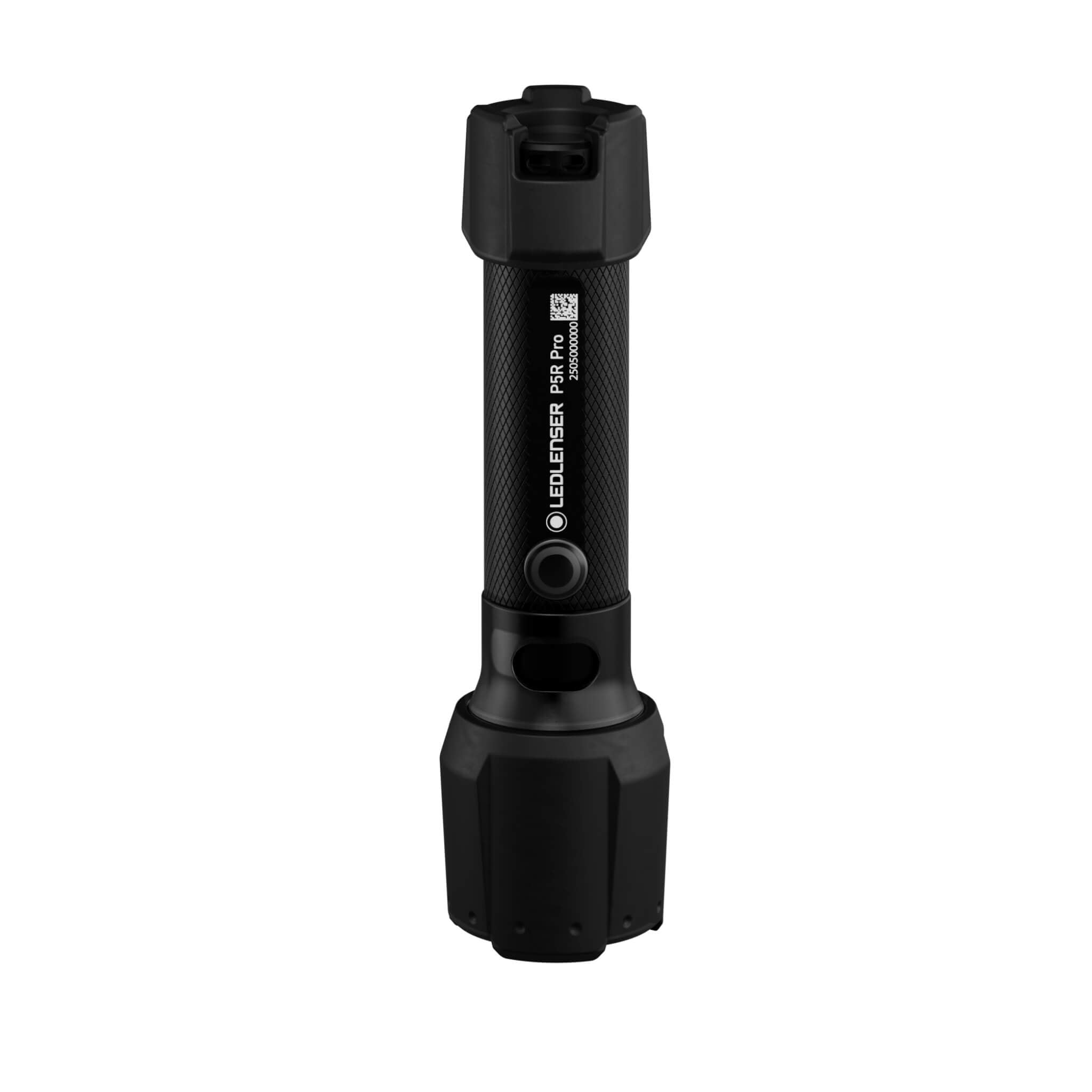

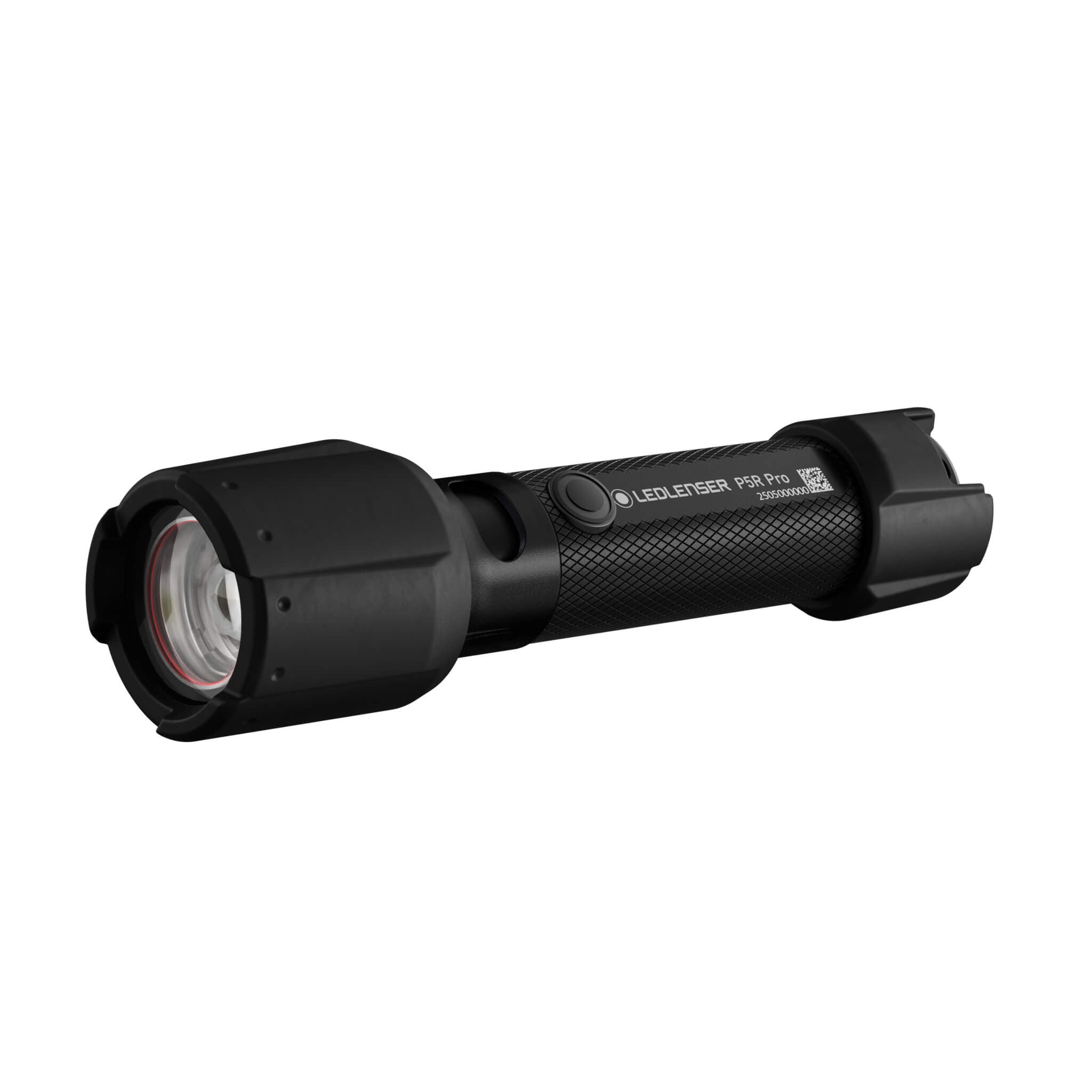

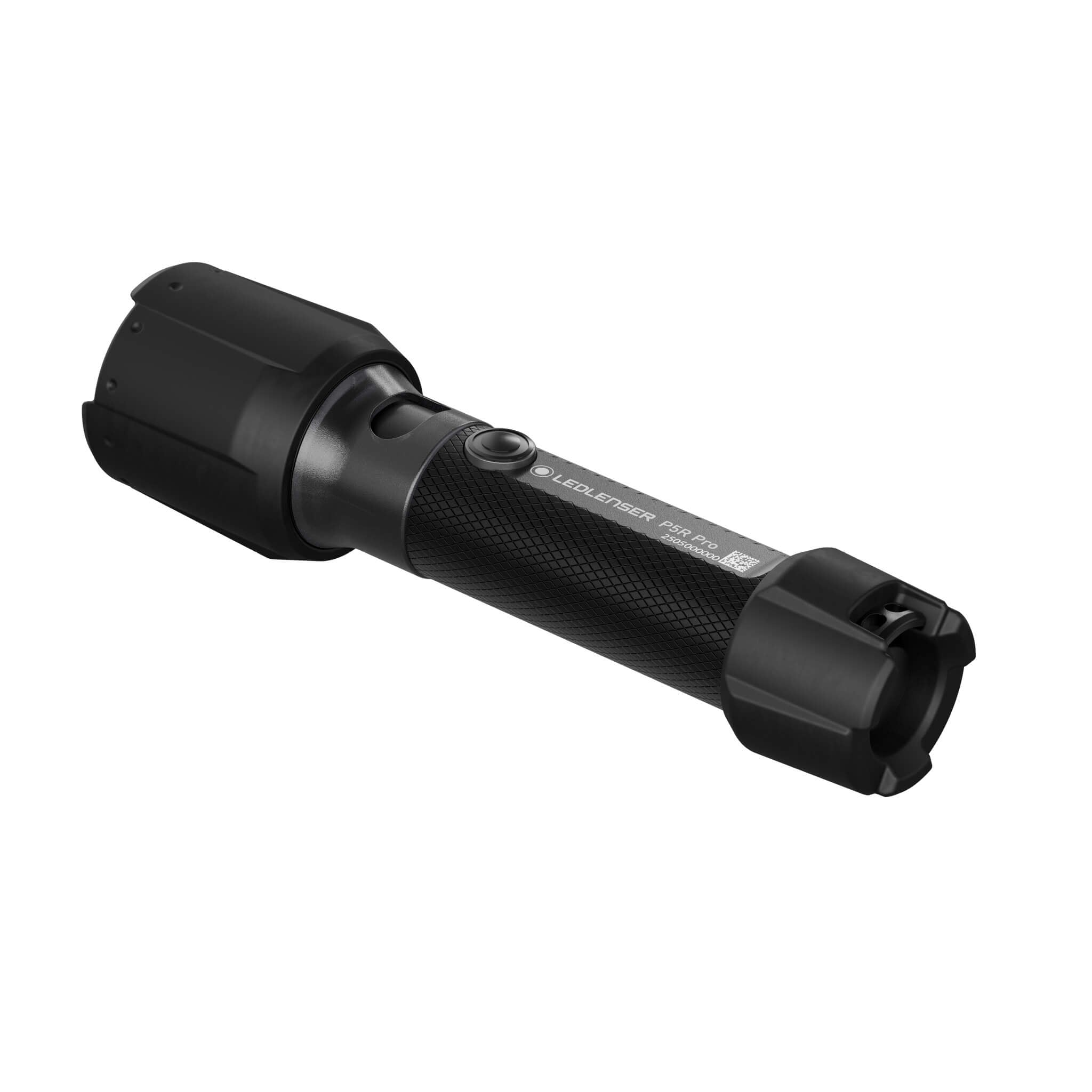

From vehicle maintenance to rewiring your client’s house: At your job, you regularly need close-up illumination to make sure your project meets your standards. This is where the Ledlenser P5R pro comes in. With a charging station and the option to use both rechargeable and disposable batteries, the compact flashlight is always ready and able, just as you are.

  • Compact flashlight with focus function (Advanced Focus System) and natural white light with high CRI against eye fatigue
  • Extremely robust: High water and dust resistance (IP68), removable protective bumpers for added protection and 7-year warranty*
  • Sustainable: Use of 75 % recycled aluminium9
  • Rechargeable via USB-C, with additional charging station
  • Dual Power Source: Use of rechargeable and disposable batteries possible

User Guide

Safety Instructions and Warnings

Technical Data

  • Weight incl. batteries [g]116
  • MaterialAluminum alloy
  • Luminous range [m]131
  • Luminous range focused [m]135
  • Tube diameter [mm]22
  • Head diameter [mm]36

Power Supply

  • Battery quantity1
  • RechargeableYes
  • Battery typeLithium-ion
  • Total battery voltage [V]3.7
  • Total battery capacity [mAh]920
  • Total battery energy [Wh]3.404 Wh

Further Specifications

  • IP classIP68
  • Drop test [m]2
  • Working temperature [°C]-20 to +40

Light Functions

Neutral White Main: Boost, Power, Mid power, Low power

Light Source

  • Amount LEDs1
  • ColorNeutral White
  • Color temperature [K]4500 to 5500
  • CRI80

Light Values

Boost Power Mid power Low power
Luminous flux (lm) 750 350
Beam range (m) 280 180
Duration (h) Power:1 Mid power:3.5 Low power:18

Switch

Front Switch

Features

Brilliant Clarity , Sustainable, Dual Power Source, Element-proof, USB-C Charging, Transportation Lock

LED

  • LED Configuration 1 x Natural White Main LED
  • Luminosity1 MAX 750 lm - MIN 25 lm
  • Lighting Range1 MAX 280 m - MIN 50 m
  • Battery Duration1 MAX 18 h - MIN 1 h
  • CRI 80
  • Color Temperature 4500 to 5500
  • 4500K

  • Light Functions

    • Power - high light output for every situation
    • Mid Power - medium light output for every situation
    • Low Power - economical light for long battery life, glare-free reading and working
    • Boost - short-duration maximum power for more brightness
  • Switches

    • Intuitive One Button Control: Provides for quick and easy control of individual light functions.
  • Energy Management

    • Charge Indicator - it shows the current charge status of the battery
    • Battery Indicator - it shows the current level of the battery
    • Low Battery Warning - it warns you when the battery is low
  • Special Functions

    • Rechargeable (& replaceable) battery: Save money, batteries and reduces environmental impact
    • USB-C charging: Charging with USB-C cable for rechargeable battery
    • Dual Power Source: Alkaline batteries can be substituted when a recharging power source isn't available

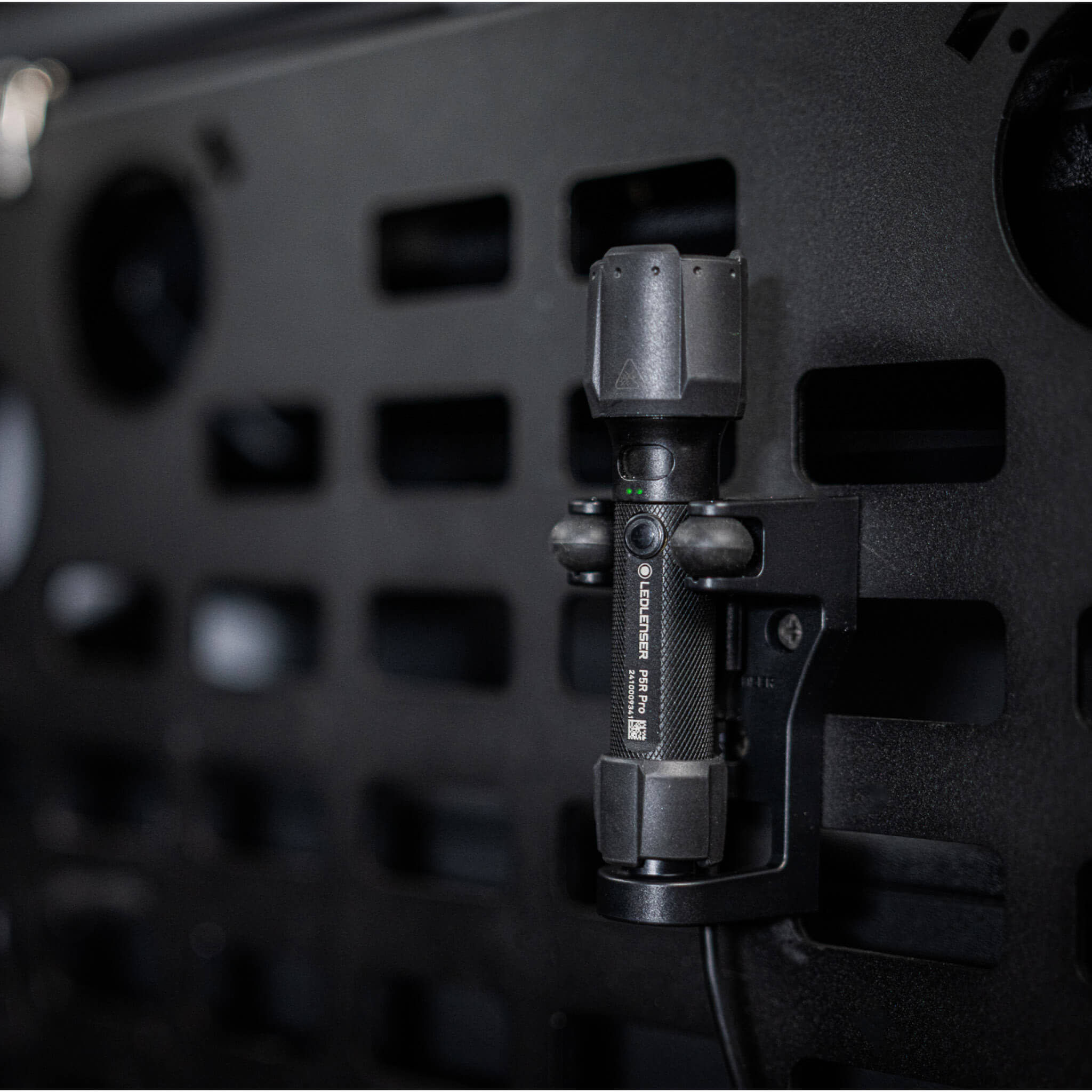

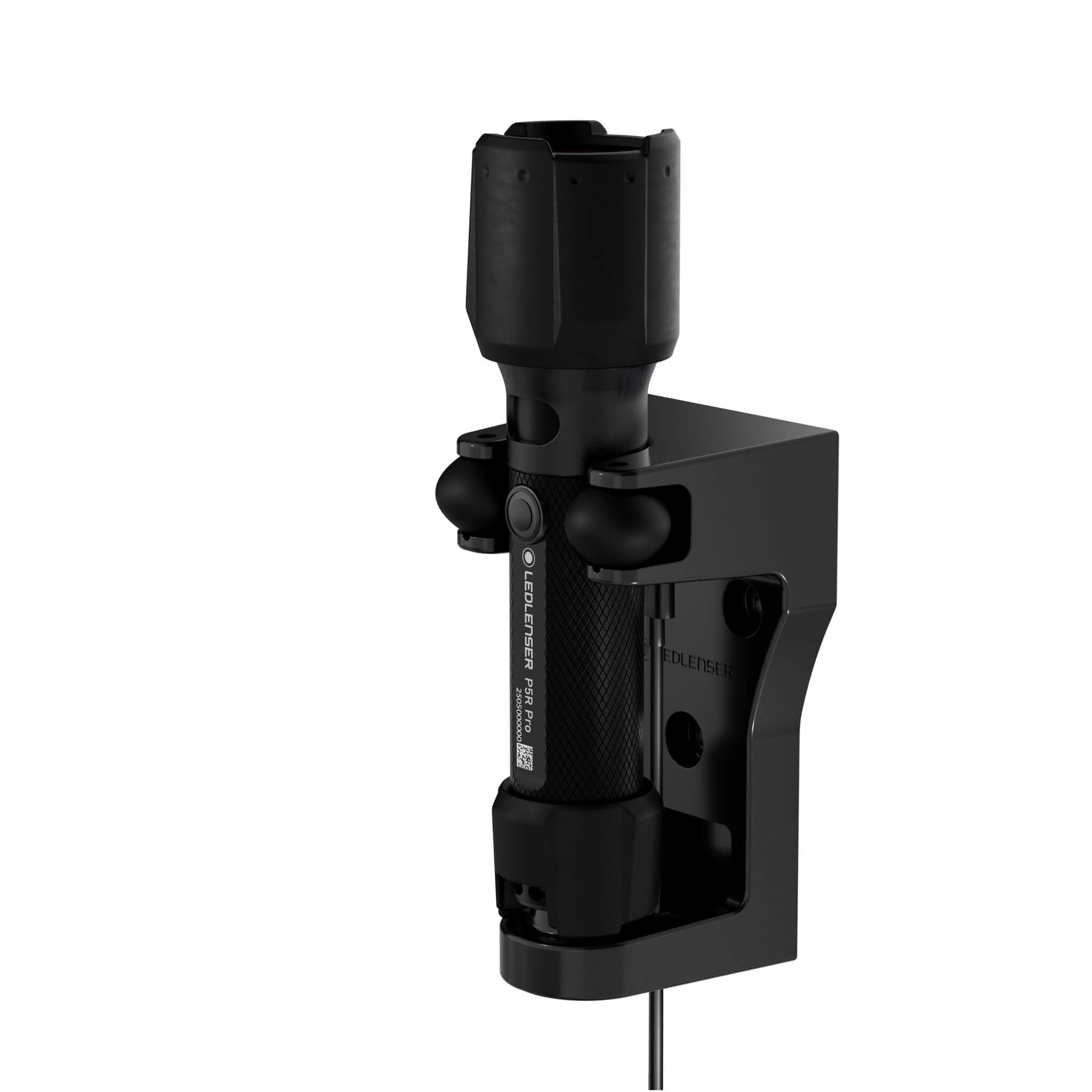

    • Charging Station: Conveniently charges flashlight when not in use
    • Natural light: Delivers the highest accuracy in color critical applications and helps with eye fatigue
    • Advanced Focus System: Seamlessly focus the light beam from a spot or flood without losing quality of light
    • 4 Brightness levels: Low, Mid, Power and Boost beam levels
    • Removable bumpers: Helps to protect flashlight from rolling and impact
    • Sustainability: Made with 75% recycled aluminum and carries a 7 year warranty
    • Elements Proof: High water and dust resistance (IP68)
    • Intuitive One Button Control: Provides for quick and easy control of individual light functions.
    • Energy Status Indicator: Battery indicator, Charge indicator, Low Battery Warning
    • Transport Lock: Prevents light from being turned on accidentally and using up battery
    • Temperature Control System: Keeps light from overheating so it can run brighter and longer
    • 7 Year Warranty: Be confident that we stand behind the craftsmanship and quality of our products
  • IP-Class

    • IP68 - Fully Dust-proof and protection in full water submersion below 1 meter for more than 30 minutes

Height and Weight

  • Head Diameter 36 mm
  • Width 22 mm
  • Height 131 mm
  • Weight 116 g

Battery and Casing

  • Battery 1 X 14500 Li-ion rechargeable battery
  • Battery Capacity2 920 mAh
  • Water Resistance IP68
  • Rechargeable Yes
  • Rechargeable

    Did you know that conventional, disposable batteries can require up to 500 times more electricity to produce than they can release? By opting for rechargeable batteries, not only are you saving money in the long-run by reusing the same batteries, but you’re no longer throwing disposables away, which is a plus for Mother Earth.

1 Battery Pack 145001 Battery Pack 14500
Adjustable Wrist StrapAdjustable Wrist Strap
Roller Shutter Type CRoller Shutter Type C
Charging Station Type CCharging Station Type C
Charging Cable USB-CCharging Cable USB-C
Belt BagBelt Bag
